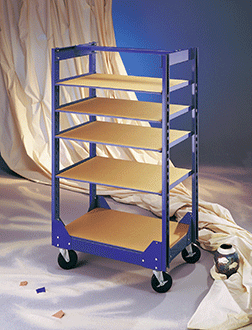

Shelf Truck & Versa Cab

North Star Shelf Trucks and Versa Cabs are moderately priced but of industrial quality.  They were originally designed for potters, but they are now used in print shops, machine shops, warehouses, hospitals and factories around the world.  These trucks are a wonderful addition to any studio or school and will last a lifetime with almost no care.

CONSTRUCTION

There are many unique features that distinguish North Star Shelf Trucks from all others.

North Star uses a much larger, wider, stronger caster than any other manufacturer.  Full 6 inch diameter American-made industrial ball bearing casters are rated at 300 pounds each (or 1,200 pounds) and roll easily, even over rough or contaminated floors.  All four casters swivel for easy maneuvering and two have foot-operated parking brakes.

Shelves are supported at each end by brackets of a unique design that simply drop into square holes spaced every 2 inches along the corner uprights.   The spacing between shelves and the number of shelves is instantly adjustable without tools.  All shelves except the bottom one, which rides directly on the base, can be placed at any level so there is never wasted space and conveniently slide in and out.  For low pieces, such as tiles, the truck can hold as many as 22 shelves.

This is the only such truck in the world engineered from ground up to ship by UPS for lowest freight cost and quickest shipping.

The truck is made entirely of heavy 14-gauge steel with North Star's blue powder coat finish.  Each truck comes with four pair of shelf brackets, which will yield five shelf levels (the base carries the fifth shelf).   North Star shelves are simply 24" x 36" rectangles of 1/2" MDO plywood trimmed with blue T-molding.  Those who need heavier shelves, some other configuration (such as two 12" x 36" shelves per level) or who want to save on shipping cost find it easy to make their own.

DIMENSIONS AND CAPACITY

North Star Trucks measure 39 inches wide by 24 inches deep by 67 inches tall.  They carry 24" x 36" shelves of any thickness.  Safe load capacity is 750 pounds.

SHELF TRUCK OPTIONS

Trucks are sold individually or as a "Shelf Truck Package," which is simply a Shelf Truck and a set of five shelves priced lower than the two items purchased separately.  Extra brackets are quickly available and are sold by the pair or by the dozen pair.

VersaCover
Instantly converts any Shelf Truck to movable damp box or drying cabinet. Made of clear 20-gauge vinyl w/100% polyester canvas top and corners, two full-length #8 molded nylon zippers.

VersaCab Package
Shelf Truck, VersaCover, 6 shelf brackets, 3 wire shelves, vent shelf

CONVENIENT & LASTING CONSTRUCTION

• All Heavy 14-Gauge Steel

• Multiple Uses with Easy Maneuvering Ability

• Highly Versatile Storage Shelves

• Attractive and Highly Functional Design

• Generous in Size with Easy Access to Shelves

Shelf Truck & VersaCab Price List
Effective May 2006

NOTE: If your order exceeds 150 pounds, we will contact you with freight cost prior to shipping.



Item No.	Description	Weight & No. of Pkgs	Price
600	Shelf Truck with 8 Brackets, without Shelves	40, 49	$549.00
602	Shelf Truck Pkg. with 8 Brackets &  5 MDO Plywood Shelves	40, 49, 53	$649.00
610	Extra Shelf Brackets Sold by the Pair	6	$17.50
611	Extra Shelf Brackets 12 Pairs	30	$175.00
650	Extra Shelves Set of 5 - 24 x 36 x ½" MDO Plywood	53	$125.00
652	Wire Shelves Set of 3 - 24 x 36 x 1½" lip, open steel wire	30	$129.50
625	VersaCab Package Shelf Truck, VersaCover, 6 shelf brackets, 3 wire shelves, vent shelf	66, 47, 31	$849.00
626	VersaCover Instantly converts any Shelf Truck to movable damp box or drying cabinet. Made of clear 20-gauge vinyl w/100% polyester canvas top and corners, two full-length #8 molded nylon zippers.	15	$249.00
628	VersaCab RetroFit Package VersaCover, 3 wire shelves, vent shelf	50	$369.00

Prices F.O.B. factory.  All information and prices subject to change without notice.

---
