Standard Extruders
 |
 |
 |
| (Standard Extruder) |

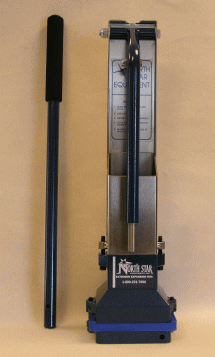

(Stainless Extruder W/ Expansion
Box Kit |
(Stainless Extruder
Package) |
Here are the simplest, safest extruders
available for small to medium extrusions - the kind most of us do most of the time.
They have proved their utility and durability year after year.
North Star extruders do not look like or work
like any others. They are designed to be simple, safe and inexpensive. Both
models feature a 4 inch square steel barrel tapered at the top for easy loading.
Each comes with a long extension handle to give extra leverage for small extrusions or
stiff clay.
Two Models
To Choose
There are two North Star standard extruders. One
has a stainless steel barrel and the other is regular steel that has a powder
coated barrel exterior, frame and handle. The Stainless and Standard models are identical in
shape and capacity and any North Star standard die fits either one.

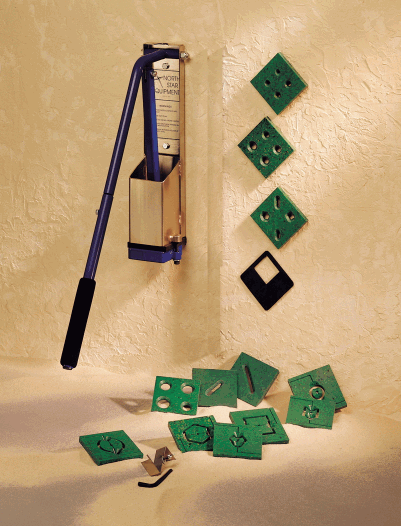

The stainless extruder and the Accessory Die Kit are packaged
together at a money-saving price as the "Stainless Extruder Package."
The Accessory Die Kit may also be purchased separately.
"Which model
is right for me?"
The Stainless model offers the most
versatility. It can be used with just about any clay type as long as the clay is
soft and easy to work with your hands. Because stainless steel won't rust, it is
ideal for use with white stoneware clays and porcelain. If you're going to
be using these clay types, then our Stainless extruder might be your best
choice. The Stainless model is offer as a stand-alone unit, without dies, or in
value-priced packages. (See the price list, below.)

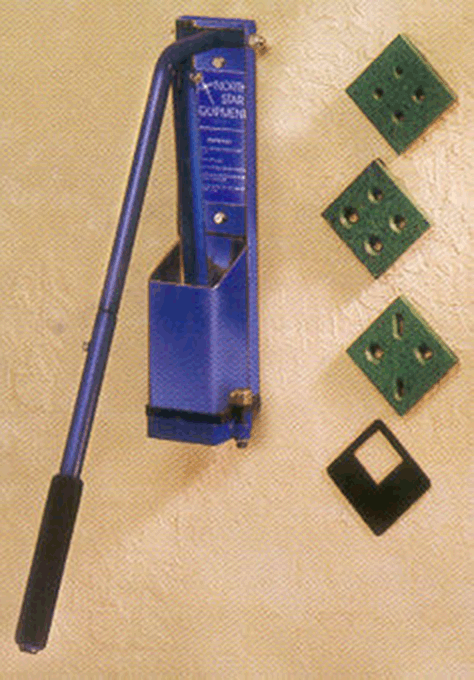

The interior of the Standard
extruder is plain steel. If the barrel's isn't washed out and periodically
protected with a light film of machine oil or silicone lubricant, then it can
rust or develop light oxidation that can stain your clay. Keep it clean and dry
between uses and the Standard model can be used just like the Stainless model.
The Standard model comes with our Basic Die Kit and one blank die installed.
Designed
To Be Be Sturdy, Safe and Easy To Use
In these extruders, the handle
length and barrel size are matched to give plenty of leverage without
ratcheting. There are no dangerous shackles, fewer pinch points, no
clumsy multi-jointed handle to come loose, and no post or ratchet parts to wear out.
The handle is anchored at one fixed pivot point, completely eliminating the danger
of a heavy steel bar slipping or suddenly offering no resistance. Clay is loaded with
the handle in the down position, again eliminating danger from a heavy, hard-to-control
handle.
Finally there is this simple but very
important note: These machines hold about eight pounds of clay, which will give a
longer extrusion than most people can handle at one time.

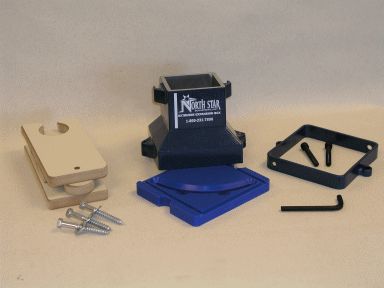

Expansion Box Kit
The Expansion Box is an extruder accessory that
allows the user to produce larger extrusions from their North Star 4” extruder.
This is accomplished by adapting the bottom portion of a detachable box to fit
North Star’s selection of 6 inch Dies. We have a selection of stock 6” dies
available & custom dies are quickly made and inexpensive.
 |

(Click on button to view dies.) |

(Custom die order forms.) |
Standard Extruder Dies
Every extruder comes with 8 coil dies, 2
handle dies, one square coil, one hex coil, a blank die and a die mask. Several of
the coil dies contain 4 cavities of different sizes and the die mask is used to block off
any three of them. The Accessory Die Kit, which may be purchased separately, contains
a stainless steel Z-Bracket (die brace), 4 coil dies, 2 ribbon dies and 6 hollow dies.
All dies are made of 1/2 inch thick polyethylene, which is extremely wear-resistant and
completely non-contaminating. The top edge of the die cavity is beveled to compact
the clay as it passes through, giving a crisp, more solid extrusion. In the hollow
dies, there is a bevel on both the interior and exterior portions under each side of the
bracket (which holds the center of the hollow dies) that helps the extrusion to
"heal" after is has been cut apart by the bracket. This bracket fits into
a Z-shaped slot machined into the top of the hollow die and is held in place by the barrel
of the extruder. If a hollow die is mounted in place, the center part of the die is
in exactly the right place and the wall thickness will automatically be even all the way
around.
Note that in the stainless extruder,
everything that comes in contact with the clay is either stainless steel or plastic and will
not discolor the most delicate porcelain even if clay is left in the machine.

(Custom die order forms.) |
Extruder Price List
May 2006
NOTE: If your order exceeds 150 pounds, we will contact you with freight cost prior to shipping.
|
Item No. |
Description |
Weight & No. of Ctns |
Price |
 |
|
900 |
Standard Extruder Painted Regular Steel w/Basic Die Set Only |
23 |
$349.95 |
|
|
910 |
Stainless Extruder Stainless Steel Barrel w/Basic Die Set Only |
23 |
$399.95 |
|
|
950 |
Stainless Extruder
Package Stainless Steel Barrel w/Basic Die Set & Accessory Die
Set |
26 |
$449.95 |
|
| 950EX |
Expanded Extruder Package
(4" Stainless Extruder, Expansion Box Kit plus 25
Hollow & Solid Dies) |
26 , 8 |
$589.95 |
|
|
960 |
Jumbo Extruder Package Stainless Steel Barrel
W/ DIE SETS - 915, 925, 925DS1, 925DS2, 925DS3, 925GS, 926A, 926B,
926C Over 50 Shapes Included & Z-Brace |
30, 15 |
$775.00 |
|
| 940 |
The Expansion Box Kit
The expansion box, die retainer ring, hex wrench, three piece
spacer board and all hardware. |
8 |
$149.95 |
|
|
915 |
Basic Die Set Blank, 4-round dies, Sm Square, hex & 2 ribbon dies |
5 |
$55.00 |
|
|
925 |
Accessory Die Set 4 Lg Coils, 2 Ribbons, 6 Hollow Dies & Z-Brace |
5 |
$99.00 |
|
North Star offers a full line of other die sets and
individual shapes.
Our complete line of dies is available now and ships the
same day you order!
F.O.B. Factory. Prices and
specifications subject to change without notice.
|
